Products

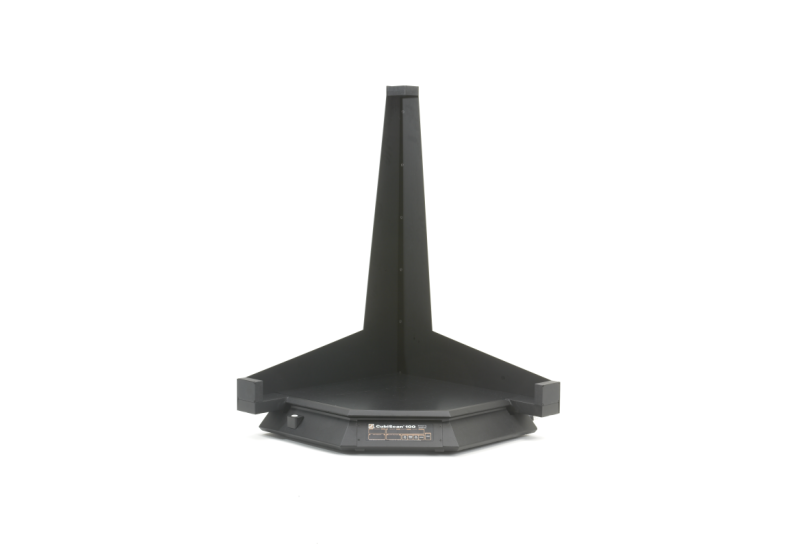

CubiScan 100


Eliminate Costly Charge-Backs -  Request a Quote Now


$6,700 - CTP account number required for special pricing.

The CubiScan 100, an integrated cubing and weighing system, gives you total control in any shipping application. Imagine the benefits of collecting your package information quickly and consistently–there’s no need for second guessing, no room for human error. Tested and certified as a legal-for-trade cubing and weighing device, the Cubiscan 100 is a valuable tool in freight manifesting. Quicker and more reliable than manual measurements, the CubiScan 100 helps shippers get it right the first time by applying the correct dimensional-based shipping charges.

Features

An integrated digital display and control panel allow finger-tip control.  Easily interfaces with UPS WorldShip® by simply selecting the CubiScan 100 from the hardware dropdown list.  With a measuring speed of 1-2 seconds, the CubiScan 100 has the ability to measure thousands of packages per day.  The CubiScan 100 is user installable, user maintainable, and provides you with the reliability of over 25 years of experience.


Downloads



Physical Specifications

Length
32 in (813 mm)

Width
32 in (813 mm)

Height
48 in (1,220 mm)

Weight
70 lbs (32 kg)

Performance Specifications

Operating Speed
1 – 2 seconds per measurement

Dimensional Increment
0.1 in (2 mm) / For LFT 0.2 in (5 mm)

Weight Increment
0.05 lb (0.02 kg)

Measurement Range

Length
0.5 in (13 mm) to 24 in (610 mm)

Width
0.5 in (13 mm) to 24 in (610 mm)

Height
0.5 in (13 mm) to 36 in (914 mm)

Weight
0.15 lbs (60 g) to 100 lbs (50 kg)

Other

Data Output
EIA RS-232-C, bi-directional

Humidity
90%

Measure Sensor
Ultrasonic

Operating Temperature
-10 c

Weight Sensor
Load cell
